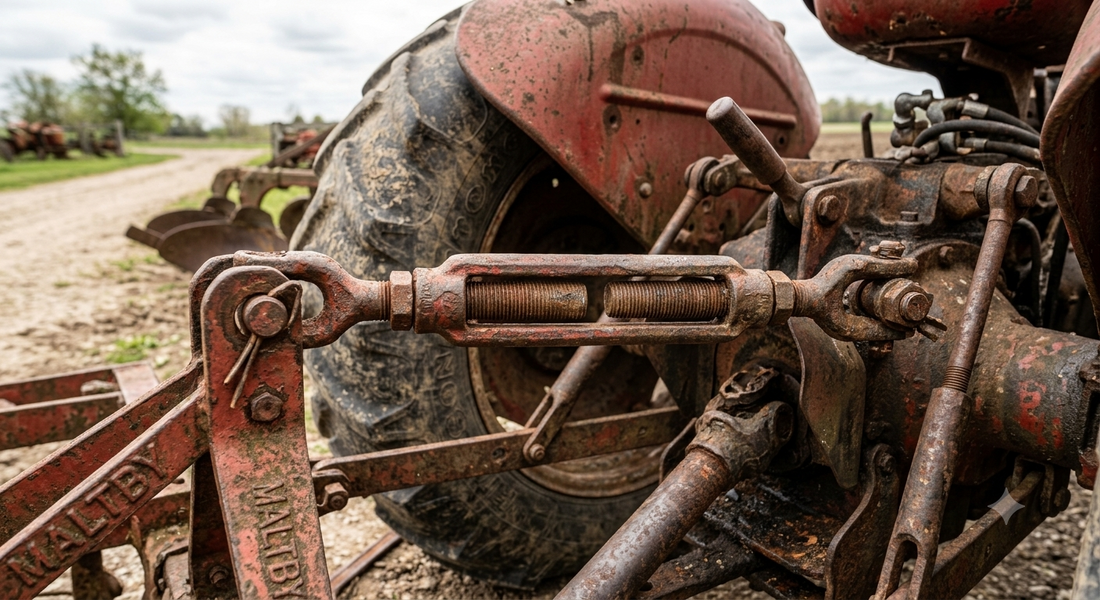

How to Loosen Seized Tractor PTO Shafts & 3-Point Hitch Turnbuckles

Agricultural equipment works in the roughest conditions imaginable: rain, mud, manure, and corrosive fertilizer dust. When farm implements sit idle over winter, moisture and fertilizer scale fuse PTO splines, 3-point hitch turnbuckles, and drawbar pins into solid blocks of red rust.

Trying to force a frozen PTO yoke off a tractor spline with a sledgehammer or puller often damages the internal tractor PTO shaft bearings or cracks iron castings. Here is how heavy-equipment mechanics safely break agricultural rust welds.

The Challenge of Agricultural Rust & Fertilizer Scale

Nitrogen-based fertilizers accelerate iron oxidation exponentially. Combined with soil moisture, fertilizer scale causes heavy-gauge steel splines to rust-bond across large surface areas, creating hundreds of square inches of friction lockup.

Step-by-Step PTO Spline & Turnbuckle Freeing Guide

Step 1: Mechanical Debris Removal

Scrape off mud crusting and heavy scale from turnbuckle threads or the PTO yoke locking collar using a stiff wire brush and screwdriver tip. Ensure the quick-disconnect pin or collar mechanism on the PTO shaft moves freely.

Step 2: Thermal Shock Application

Heat the outer female collar of the turnbuckle or PTO yoke with a propane or MAP-gas torch. Heat the outer piece evenly while avoiding direct flame on rubber grease seals or plastic PTO safety shields.

Step 3: Deep Soak with Heavy-Duty Penetrant

Immediately spray Maltby Rust-Dissolving Chemical Penetrant directly into the heated spline grooves or turnbuckle thread entry points.

• Capillary Draw: The high capillary action of Maltby draws the chemical deep along the full length of the splines, breaking down hard iron oxide layers.

Step 4: Impact Micro-Vibrations

Using a heavy brass punch, strike the outer yoke body near the splines firmly. The shockwaves create micro-fissures in the rust layer, allowing the penetrant to saturate the entire joint.

Step 5: Leverage and Work the Joint

For turnbuckles, slide a pry bar or pipe through the center eye and work it back and forth in small quarter-turn movements. For PTO shafts, use a pry bar carefully levered against the tractor housing shoulder while depressing the release pin.

Why Farmers Trust Maltby

Since 1919, Maltby Chemical Penetrant has been a staple in agricultural shops. Formulated for heavy-duty iron and steel, it cuts through fertilizer scale and heavy rust where thin multi-purpose oils evaporate uselessly.

Preventive Maintenance Tips

• Clean splines thoroughly with solvent after removal.
• Apply heavy-duty anti-seize or grease to PTO splines every spring and fall.
• Keep 3-point hitch threads coated with protective lubricant when storing implements outdoors.
