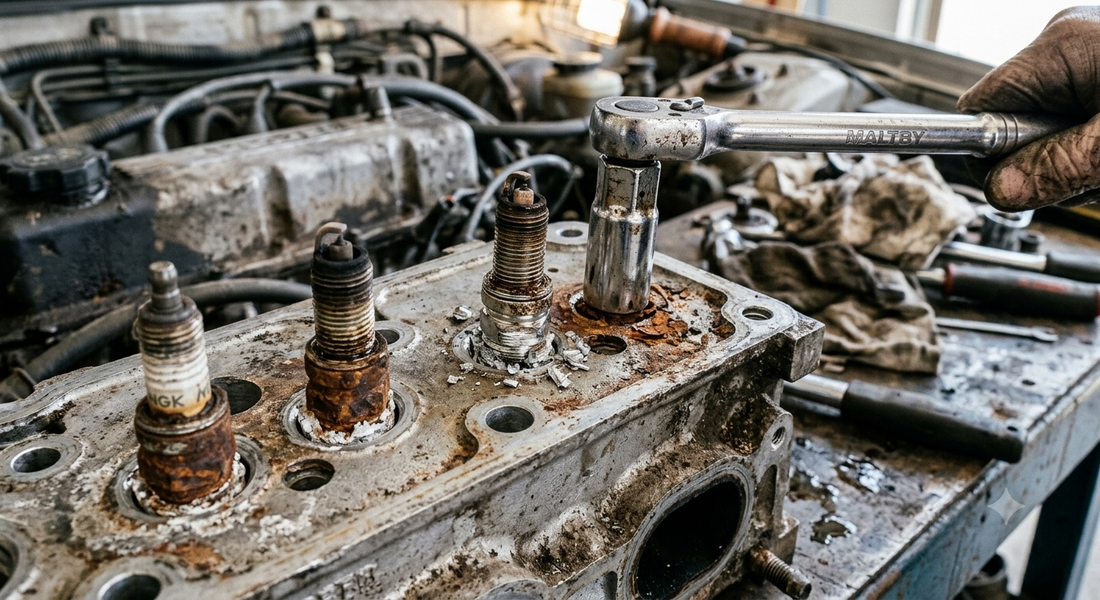

How to Remove Seized Spark Plugs in Aluminum Cylinder Heads Safely

Modern engines utilize aluminum alloy cylinder heads to save weight and improve heat dissipation. However, when steel spark plugs remain threaded into aluminum heads for 100,000 miles or more, galvanic corrosion and carbon buildup lock the threads together tight.

Applying high torque to a seized spark plug risks stripping the delicate soft aluminum threads right out of the cylinder head—requiring expensive Heli-Coil or Timesert thread insert repairs. Here is the safe, chemical-first procedure to back out stuck spark plugs without galling the aluminum head.

Why Spark Plugs Seize in Aluminum Heads

Two primary factors lock spark plugs into cylinder heads:

1. Galvanic Corrosion: Dissimilar metal contact between steel plug shells and aluminum threads creates white aluminum oxide scale.
2. Combustion Carbon Build-Up: Carbon baked onto the exposed bottom threads of the plug shell creates a mechanical wedge as you attempt to back the plug out.

Step-by-Step Safe Removal Guide

Step 1: Always Work on a 100% Cold Engine

Never attempt to remove spark plugs from an aluminum head while the engine is hot or warm. Aluminum expands at a higher rate than steel when heated, binding the threads tighter. Let the engine sit overnight until completely cold.

Step 2: Clean the Spark Plug Well

Blow compressed air down into the spark plug well to remove dirt, sand, and debris that could drop into the cylinder once the plug is removed.

Step 3: Chemical Soak Deep Into the Spark Plug Well

Spray a generous pool of Maltby Rust-Dissolving Chemical Penetrant directly down into the spark plug well around the hex nut base.

• Allow the chemical to soak for at least 30 to 45 minutes. Maltby's ultra-low surface tension creeps down the fine threads, dissolving aluminum oxide and softening carbon scale at the bottom tip.

Step 4: Use a 6-Point Spark Plug Socket and Extension

Attach a 6-point spark plug socket with a rubber insert to a 3/8-inch drive ratchet. Do not use an impact wrench or long breaker bar.

Step 5: The "Back-and-Forth" Torque Technique

1. Apply light, steady counter-clockwise pressure until you feel the plug "crack" loose (usually an eighth of a turn).
2. Stop immediately. Turn the plug back clockwise one-sixteenth of a turn.
3. Spray another quick squirt of Maltby down into the well.
4. Work the plug back and forth—turning it out a quarter-turn, then back in an eighth-turn—to allow the liquid chemical to coat the newly exposed threads and flush out carbon grit safely.

Why Maltby Protects Delicate Aluminum Threads

Maltby Chemical Penetrant is formulated to dissolve scale and lubricate tight tolerances without harming aluminum alloys or leaving sticky residues behind, ensuring smooth thread disengagement.

Installation Rules for New Spark Plugs

• Torque new spark plugs strictly to manufacturer torque specifications using a calibrated torque wrench.
• If recommended by the plug manufacturer, apply a microscopic film of anti-seize to the upper steel threads, reducing torque specs by 10-15% to avoid over-tightening.
