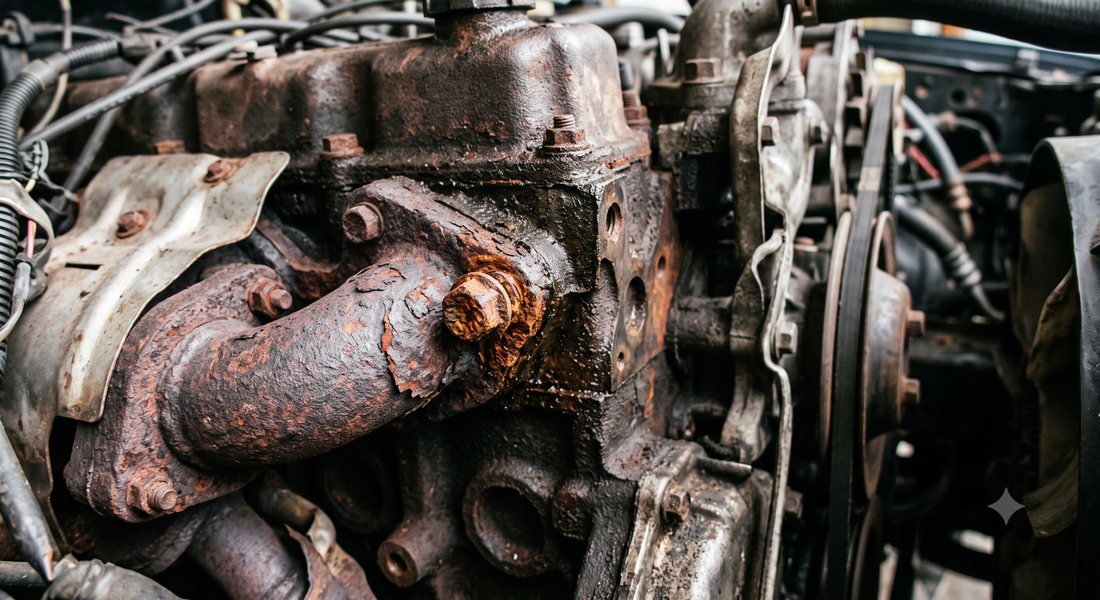

How to Remove a Rusted Exhaust Manifold Bolt Without Snapping It

Every mechanic, restorer, and DIYer knows the sudden knot in their stomach: you’re working on an exhaust manifold, turn the wrench, and feel that sickening "spongy" flex. You know if you push any harder, the bolt head is going to snap clean off, leaving you with an engine block surgery that requires drilling, easy-outs, and tapped threads.

Exhaust manifold hardware lives in the harshest environment on any vehicle. Subjected to constant heat cycles reaching over 1,200°F (650°C), thermal shock, and road moisture, the steel bolts heat-weld and heavily oxidize directly into cast iron or aluminum cylinder heads.

If you are dealing with a frozen manifold bolt or stud right now, stop pulling on the breaker bar. Here is the step-by-step chemical and mechanical process to break the rust bond and back the bolt out safely.

Why Exhaust Bolts Snap (And Why Standard Sprays Fail)

When iron oxidizes into rust, it expands up to six times its original volume. Inside a threaded hole, this expansion creates immense mechanical pressure—effectively locking the male and female threads together like a press-fit weld.

When confronted with a frozen bolt, most people reach for a generic multi-purpose lubricant. Here is why that usually ends in a broken bolt:

• Generic sprays lack capillary creep: Standard lubricants sit on top of the bolt head rather than drawing down into microscopic thread tolerances.
• Low heat resistance: Light household oils burn off or evaporate before they can break down heavy iron oxide.
• Lack of rust-dissolving chemistry: Water displacement sprays (like standard WD-40) are designed to prevent moisture, not to chemically break down deep, crystalline rust scale.

To get the bolt out intact, you need to combine targeted chemical penetration with proper torque technique.

The Step-by-Step Removal Guide

Step 1: Clean the Exposed Threads and Flange Area

Before applying any chemical, take a stiff wire brush or a small wire wheel on a rotary tool and scrub the exposed bolt head, threads, and surrounding manifold flange. Removing heavy surface rust, dirt, and carbon scale allows the penetrant to sit directly against the thread gap rather than getting absorbed by surface debris.

Step 2: Apply a High-Capillary Chemical Penetrant

Spray a generous amount of a professional-grade rust penetrant like Maltby Rust-Dissolving Chemical Penetrant directly at the base of the bolt head and onto any exposed threads behind the flange.

Pro Tip: Apply the penetrant while the engine is completely cool. Cold metal allows low-viscosity chemical formulas to draw deep into thread crevices via capillary action without flashing off from engine heat.

Step 3: Allow Proper Dwell Time

Chemical breakdown takes time. Give the penetrant at least 15 to 30 minutes to creep down the full length of the threads. For severely corroded manifold bolts that have been untouched for decades, apply a second coat and let it soak overnight.

Step 4: Induce Micro-Shocks (Tapping)

While the penetrant is dwelling, take a small brass punch or light ball-peen hammer and gently tap the top and sides of the bolt head.

Why this works: You are not trying to force the bolt; you are creating tiny vibrational micro-fractures in the brittle rust layer. These microscopic cracks allow the chemical penetrant to migrate even deeper into the threads.

Step 5: Use the "Rocking" Method (Back and Forth)

When you apply a socket or wrench (always use a 6-point socket to prevent rounding the bolt head), do not simply pull in the counter-clockwise direction.

1. Apply light, steady pressure counter-clockwise until you feel resistance.
2. Stop, and apply light pressure clockwise (tightening direction) for a fraction of a turn.
3. Apply a fresh squirt of penetrant into the freshly exposed thread gap.
4. Continue this back-and-forth "rocking" motion, working the bolt out a quarter-turn at a time.

This technique clears dissolved rust debris out of the thread channels and allows the chemical to continuously lubricate the newly exposed metal as the bolt backs out.

When to Reach for the Heavy Artillery

If a manifold bolt refuses to budge after proper soaking and micro-shocks, do not use an impact wrench on maximum torque. High-speed impact shocks are the #1 cause of sheared exhaust studs.

Instead, apply a dedicated, professional-grade chemical formula designed specifically for extreme mechanical lockup.

Why Mechanics Rely on Maltby

Formulated originally in 1919 and proven over four generations, Maltby Rust-Dissolving Penetrant is engineered specifically for severe rust fusions where consumer sprays fail:

• Ultra-Low Surface Tension: Creeps into clearances under 0.001 inches to reach hidden threads.
• Active Rust Dissolution: Chemically breaks down iron oxide bonds rather than just sitting on top as a temporary lubricant.
• Trusted in Extreme Restoration: Used by professional heavy-equipment mechanics, marine technicians, and vintage vehicle restorers worldwide.

Reassembly: Prevent Future Seizure

Once you successfully back the rusted bolt out, don't put it back in without protection:

1. Chase the threaded holes in the cylinder head with a tap or thread chaser to remove leftover rust scale.
2. Replace old, fatigued manifold bolts with new high-grade hardware or stainless studs.
3. Apply a high-temperature nickel or copper anti-seize compound to the threads before torquing to factory specs.
