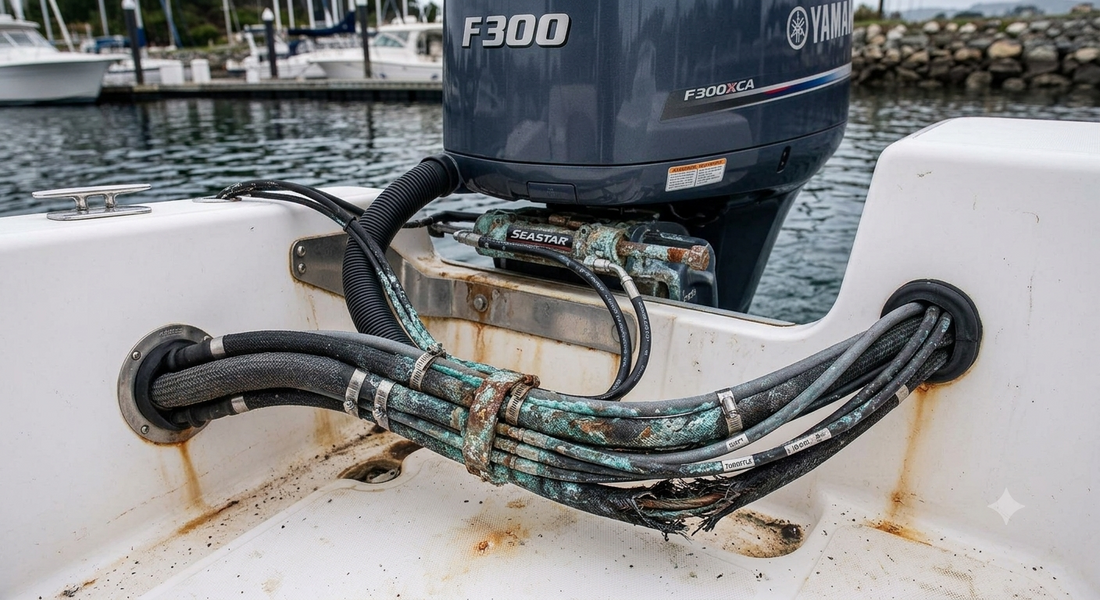

How to Free Corroded Marine Outboard Steering Cables & Lower Unit Bolts

For boat owners and marine mechanics, salt fog and ocean spray are constant enemies. Saltwater creates a unique form of severe corrosion—a mix of heavy iron oxide, aluminum oxide, and hardened salt scale that effectively cements outboard steering cables inside tilt tubes and binds lower unit mounting bolts tight.

Forcing a frozen steering wheel or applying extreme torque to an aluminum lower unit bolt often results in bent steering rams, stripped threads, or cracked tilt tube housings. Here is the professional marine procedure to break marine salt bonds without destroying expensive outboard components.

Understanding Marine Salt Lockup

When saltwater evaporates inside the narrow clearance between a stainless steel tilt tube and a steel steering cable, it leaves behind crystalline salt deposits alongside galvanic oxidation. This combination expands within microscopic gaps, generating thousands of pounds of outward mechanical pressure.

Step-by-Step Marine Cable & Bolt Freeing Guide

Step 1: Scrape and Flush Outer Salt Scale

Use a wire brush and fresh water to scrub away visible salt crusting and marine build-up around the tilt tube nuts or lower unit bolt heads. Dry the area thoroughly with compressed air or a clean rag.

Step 2: Apply Heat to Expand the Outer Housing

Using a heat gun or propane torch (exercising extreme caution around fuel lines and fiberglass transom areas), gently warm the outer tilt tube or aluminum lower unit housing surrounding the bolt hole. You want the outer sleeve warm to the touch—not red hot—to open up microscopic thread clearances.

Step 3: Saturate with Marine-Grade Chemical Penetrant

While the metal is warm, heavily spray Maltby Rust-Dissolving Chemical Penetrant directly into both ends of the tilt tube or around the lower unit bolt shoulders.

• Thermal Wicking: As the cooling outer housing contracts, it draws low-viscosity Maltby deep into the full length of the seized shaft or thread bore.

Step 4: Mechanical Vibration & Soaking

Tap the outer tilt tube gently with a brass hammer to break up crystallized salt pockets. Allow the penetrant to soak for at least 1 to 2 hours. For severe multi-season saltwater seizure, reapply and allow it to soak overnight.

Step 5: Gentle Rotation and Drive-Out

Attach a large adjustable wrench to the flat shoulders of the steering rod or use a wood block and brass punch to lightly drive the cable shaft back and forth. Work it in small increments, adding fresh penetrant as movement increases.

Why Maltby Excels in Saltwater Environments

Standard household lubricants wash away or fail to penetrate dense salt crusting. Maltby Chemical Penetrant features active chemical agents that breakdown tough iron oxides and marine scale while providing extreme capillary action in tight tolerances.

Reassembly Best Practices for Marine Gear

• Hone out the inside of the tilt tube with a wire brush drill attachment to remove remaining scale.
• Grease steering cables thoroughly with marine-grade waterproof grease before reinstallation.
• Apply marine anti-seize compound to all lower unit bolts prior to torquing.
