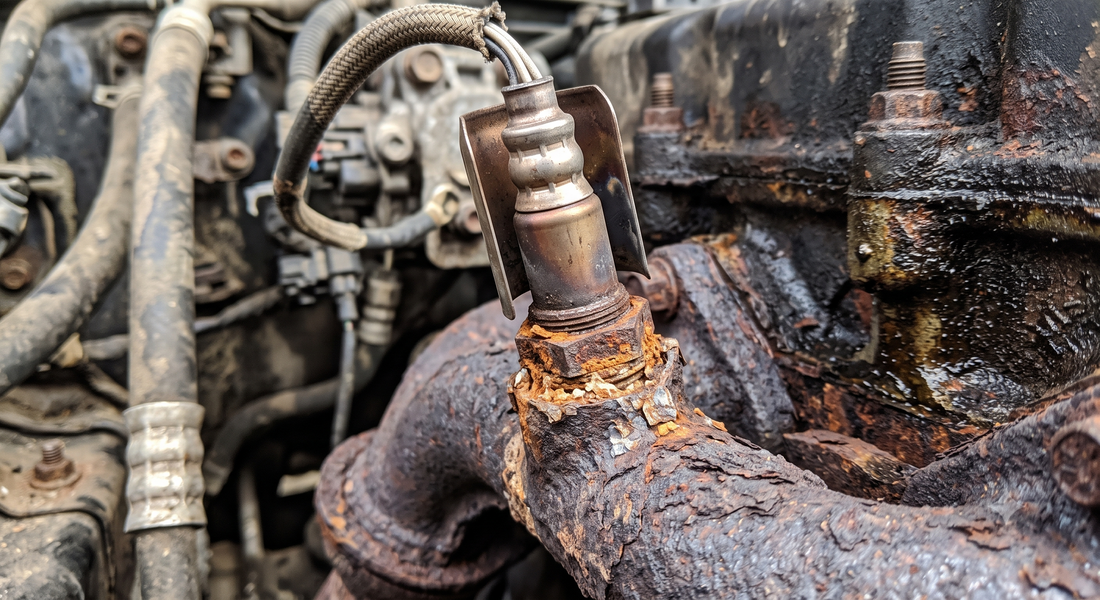

How to Remove a Seized O2 Sensor Without Stripping the Threads

Of all the tasks in automotive maintenance, removing an oxygen (O2) sensor is frequently the most frustrating. They live in an inferno, subjected to extreme heat cycles inside the exhaust pipe, making them prime candidates for seizing, galling, and chemical welding to the exhaust bung.

When you apply force to a frozen O2 sensor, the outcome is usually one of two catastrophic failures: the threads on the expensive sensor gall and tear, or, even worse, the sensor shears off, taking the threads of the exhaust pipe or catalytic converter with it.

If you are dealing with an O2 sensor that refuses to move, do not grab the largest breaker bar. Here is the professional, chemical-first approach to freeing a seized oxygen sensor without stripping the threads.

The Perfect Storm: Heat, Carbon, and Galling

Why is this specific component so difficult to remove? The environment is exceptionally hostile:

1. Exhaust Heat: O2 sensors operate in environments reaching 1,200°F (650°C), causing the metals to expand and contract constantly, forming tight mechanical lockups.
2. Oxidation Weld: Moisture and air trapped in the thread gap instantly form robust iron oxide layers that "grow" inside the joint.
3. Galling (Cold Welding): High torque on dry threads under extreme heat causes the metal surfaces (usually steel and stainless/aluminum) to microscopically fuse together.

If you skip chemical preparation and go straight to brute force, you will almost always shear the metal and tear the threads out.

Step-by-Step Removal of a Seized O2 Sensor

Step 1: Clean and Prepare the Area

Start by giving yourself room to work. If possible, disconnect the sensor wire connector. Take a stiff wire brush and clear any heavy carbon, road grime, or surface rust from the hex nut base of the sensor where it meets the exhaust bung. A clean surface allows the penetrant to sit directly at the critical thread gap.

Step 2: Use the Heat Cycle Method (Safe Approach)

The best way to loosen the mechanical lockup is to utilize the engine’s heat to your advantage:

1. Start the engine and let it idle for 1–2 minutes maximum. You want the exhaust pipe and the O2 sensor bung to be warm—around 150°F to 200°F—but not screaming hot.
2. Turn off the engine. This technique allows the metal components to slightly expand before they are shocking-hot.

Step 3: Apply an Industrial-Grade Chemical Penetrant

As soon as the engine is off and while the components are still warm, apply an specialized chemical penetrant like Maltby Rust-Dissolving Chemical Penetrant directly at the base of the sensor threads.

Why Temperature Matters: Applying a low-surface-tension penetrant to warm (but not blazing) threads utilizes a effect known as thermal expansion wicking. The temperature difference helps pull the chemical deeper into the thread crevices via capillary action than a cold application ever could.

Step 4: Allow Time to Creep (Wait 15–30 Minutes)

This step is critical. Give the chemical at least 20 minutes (for heavily seized, consider an hour or overnight) to actively creep down the length of the threads and dissolve the iron oxide layers. This chemical breakdown reduces the friction coefficient within the joint before any torque is applied.

Step 5: Rocking Torque with a Proper O2 Socket

Do not use a standard adjustable wrench, which will instantly round off the hex head. Always use a dedicated O2 sensor socket or a quality 6-point flare nut wrench that fully grips all six flats of the sensor nut.

1. Apply steady, counter-clockwise torque until you feel the sensor "pop" or begin to move.
2. Once movement begins, do not just pull it out.
3. Implement the "Rocking Method": Turn the sensor an eighth-turn out (counter-clockwise), then reverse it a sixteenth-turn in (clockwise). Apply a fresh burst of Maltby to lubricate the newly exposed threads and clear debris. Repeat this back-and-forth motion to remove the sensor smoothly.

When O2 Sensors Call for Professional Strength

If you’ve applied standard lubricants and been patient, but the sensor still refuses to move, it is time to upgrade your chemistry. Generic water-displacement sprays lack the low viscosity and active rust-dissolution properties required for severe galling fusions.

Why Mechanics Choose Maltby for O2 Sensors

Since 1919, Maltby Premium Chemical Penetrant has been trusted for its extreme capillary action, designed for professional restoration, heavy equipment, and seized hardware where consumer-grade formulas fail:

• Creeps at Microscopic Level: Engineered to penetrate thread clearances under 0.001 inches to reach the full depth of the bung fusion.
• Active Chemical Dissolution: Actively breaks down iron oxide and scale, lowering the mechanical torque required to break the joint.
• Withstands Heat Cycles: Its stable formula won’t burn off or evaporate immediately when applied to warm (150–200°F) exhaust components.

Post-Removal & Installation Best Practices

• Inspect and Clean: Before installing the new sensor, carefully inspect the threads in the exhaust bung. Clean the threads using an O2 sensor thread chaser/tap to ensure the new sensor installs smoothly without cross-threading.
• Use High-Temp Anti-Seize: Most quality replacement O2 sensors come with a small packet of nickel or copper anti-seize. If they do not, apply a high-temperature (2000°F+) nickel anti-seize compound to the new sensor threads (do not get it on the sensor element itself). This step ensures the next sensor will be easy to remove!
